SMART ENERGY & WATER SOLUTIONS

  • A Renewed Approach to Energy Sustainability for All

Our Solutions

We create energy management solutions (powered by SUNNAI) that integrate technology with renewables to yield smart consumer and environmental benefits.

ECO-1

Smart energy starts with our ECO-1 offering that integrates SUNNAI powered technologies and devices that enable untapped capacity for better energy efficiencies and conservation.

  • ECO-1 Devices Bundle
  • Enterprise IIoT Gateway
  • Thermocouple Temperature Sensor
  • One Channel Counter Transmitter
  • 2" Hall Effect Flowmeter
  • SUNNAI APP Subscription
ECO-1 Devices Bundle
The ECO-1 integrated solution is powered by SUNNAI and it includes the following devices and options:
  • Enterprise IIoT Gateway
  • Thermocouple Temperature Sensor
  • One Channel Counter Transmitter
  • 2" Hall Effect Flowmeter
  • SUNNAI APP Subscription
Active subscriptions have access to SUNNAI's HALO solution that provides solar energy monitoring and asset protection. Enjoy the benefits of integrated weather, data analytics, and engagement alerts to help drive efficiency, optimal utilization and conservation.
Enterprise IIoT Gateway
The Enterprise IIoT Gateway Lite serves as hub to the SUNNAI platform to manage secure data exchange and intergration with your residential or commmerical deployment. The unit contains the following:
  • 1 x Robustel Industrial Edge Computing Gateway
  • 1 x Power Supply
  • 1 x Two terminal connector
  • 1 x Three terminal connector
  • 1 x Eight terminal connector
  • 2 x WiFi Antenna
  • 1 x 900MHz/868MHz or 2.4GHz DigiMesh Antenna
  • 1 x Hex Key
SKU: NCD-Edge-CR-Lite
HTS Code: 854231
Thermocouple Temperature Sensor
The IoT Long Range Wireless Thermocouple Temperature Sensor is a long range wireless sensor that is reliable and easy to install. The features are as follows:
  • Industrial Grade Sensor with Ambient Temperature Range -200°C [-328°F] to 260°C [500°F])
  • Resolution 0.0625°C
  • Accuracy of ±2.2°C
  • 2 Mile Range with On-Board Antenna
  • Superior LOS Range of up to 28 miles with High-Gain Antennas
  • Wireless Mesh Networking using DigiMesh®
  • 256 Sensor Nod e per Network
  • Open Communication Protocol for custom interfacing applications
  • Small Form Factor Wireless Sensor (3×3 inch)
  • Two modes of Operation
  • Configuration mode for Sensor and X-bee Settings
  • Factory Default Option using combination of hardware buttons
  • Power efficient Built-in Sleep mode
  • Real time battery status
One Channel Counter Transmitter
Introducing our Wireless One Channel Counter with Reset, boasting up to a 28 Mile range using a wireless mesh networking architecture. It incorporates a low latency counter that never misses a pulse even during sleep. The features are as follows:
  • Industrial Grade Single Channel Counter with Reset Input
  • 32 bit counter
  • Minimum detectable pulse width 100 msec
  • Highly Accurate Pulse Counting
  • Low Latency Transmission
  • Adjustable Counting Threshold for transmission
  • 2 Mile Range with On-Board Antenna
  • Superior LOS Range of up to 28 miles with High-Gain Antennas
  • Wireless Mesh Networking using DigiMesh®
  • 256 Sensor Nod e per Network
  • Small Form Factor Wireless Sensor (3×3 inch)
  • Two modes of Operation
  • Configuration mode for Sensor and X-bee Settings
  • Factory Default Option using combination of hardware buttons
  • Power efficient Built-in Sleep mode
  • X-bee API mode use for reliable communication
  • Real time battery status
One Channel Counter Transmitter

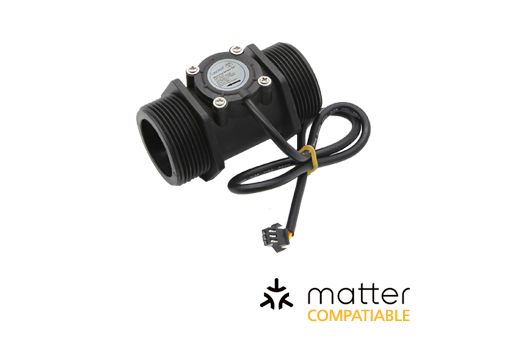

2" Water Flow Sensor Food-Grade Switch Hall Effect Flowmeter Fluid Meter Counter 10-200L/min. The specifications are as follows:
  • F=(0.2*Q)±2%, Q=L/Min, error: ±2%
  • Working range: 10-200L/min
  • Working voltage: DC 5-24 V
  • Water Pressure: ≤1.75Mpa
  • Liquid temperature: 0-100℃
  • Maximum current consumption: 15 mA(DC 5V)
  • Wire length: 15 cm
  • Size: 92mm x 55mm(L*W)
SUNNAI APP
The SUNNAI APP subscription connects to the AI powered SUNNAI™ platform where a multitude of RENEW THE NATION product offerings are available as well as access to integrated assurance partners. A subscription activates the main portal account that equips consumers with the power of energy management and engagement. The SUNNAI App enables:
  • HALO - Remote monitoring and asset protection services for energy, solar, and HVAC that works to ensure optimum system performance. It allows for monitoring to measure PV output against environment, consumption patterns, and assist in forecasting production loss. It allows for certain equipment's efficiency and performance to be assessed.
  • Consumer Enagement Alerts and Notifications - Based on weather conditions, usage patterns and data analytics the SUNNAI platform and protocols can generate alerts and notifications designed to gain efficient utilization of energy and water.




Request an assessment today from an Energy Architect and see if ECO-1 can assist with your energy management.

GET AN ASSESSMENT


Our Technology

To provide consumers with the most effective solutions, we equip key partners with our intelligent technology platform powered by SUNNAI's Smart Energy Rewards Protocol (SERP).

Renewables & Clean Energy

We Target Renewable Energy
Using renewable energy sources drive the direction of our solutions.

• Solar Thermal
A form of energy and a technology for harnessing solar energy to generate thermal energy for use in industry, and in the residential and commercial sectors.

• Solar PV
A photovoltaic system, also PV system or solar power system, is an electric power system designed to supply usable solar power by means of photovoltaics.

Smart Technologies

Intelligent Technology Solutions
Our solutions are designed to support an experience that makes things easier for consumers. We use Artifical Intelligence (AI) technology to simplify involvement.

• Interactive Voice Response
We integrate with popular technology solutions like Alexa (by Amazon) to develop assistive solutions for consumers.

• Platform & Protocol
Our unique intellectual property enables what we see as the future for participation by consumers to use energy efficiently and conservatively.



Application Uses & Examples

Our solutions are designed for a multitude of consumer and industry (residential & commercial) use cases.

Contractor & Installer Applications

The Smart Energy Rewards Platform is a complement to what contractors and installers can offer due to the clear value-added benefit related to Return On Investment justification and the opportunity to engage the end consumer with awareness of their energy and water consumption.

The SUNNAI Platform Impact:
  • System & Installation Monitoring
  • Modernized technology options (Including Alexa Skill & Google Assistant accessibilty)
  • Value-Added product and service opportunity for clients
  • Increased marketability and exposure
  • Integrated data analytics and intelligence
  • Integrated Fleet management
  • Additonal Monthly Reoccuring Revenue

Community Solar & Housing Applications

Fractionalize consumer energy and water utilization compliance will contribute to collective community solar optimal regiment. Individuals will have the opportunity to comply, and they can acquire rewards. A comprehensive rewards and incentive program will drive the consumers while the scope of the impact will be viewable at in individual and community level.

The SUNNAI Platform Impact:
  • Reduced energy consumption during peak hours improving the solar return on investment (ROI).
  • Reduced sewer cost due to reduced water consumption.
  • Enhanced social connection with the residents and community.
  • Appliance upgrade commission if resident opts for replacement.
  • Increased rental opportunities.
  • Residents will be rewarded for social media posts that drive visibility to the property.
  • The installation can qualify for the RENEW THE NATION accreditation recognition.

Hotel Operators & Commercial Facility Applications

Hotel operators that either use now or are considering a solar array and water saving devices to offset energy cost while impacting the environment can benefit integrating SUNNAI to create a marketing/visibility message that resonates with guests. The SUNNAI platform solution offered by RENEW THE NATION provides data intelligence to complement the installation and helps to ensure a better return on investment.

The SUNNAI Platform Impact:
  • Solar PV and/or Thermal Systems production data is captured and integrated with SUNNAI.
  • SUNNAI manages consumption via its consumer engagement platform.
  • The platform rewards the guest to use electricity and hot water at peak solar production.
  • Rewards are delivered to the consumer via the SUNNAI SERP Protocol in the form of credits, points or gifts.
  • The property uses less water and electricity thus improving the ROI while impacting the environment creating a marketing message for the property.

Disaster Response, Remote sites, Field Hospitals, and Government Deployment Applications

The SUNNAI platorm provides user engagement and notifications to users who have access to fixed energy sources such as deployed solar power or other generated sources and access to water stored or heated. The SUNNAI platform integrates with the host energy production, water and availability. Users are engaged and notified based on the offerings, features and capacity of the deployed assets.

The SUNNAI Platform Impact:
  • Monitoring and analysis of generated solar energy production.
  • Solar thermal water heating and hot water storage availabilty integration.
  • Water flow consumption and water supply filtering status.
  • Battery storage capacity & level monitoring
  • Integrated VVI Hyper Weather
  • AI System Diagnostics, Insights & Analytics

Energy Management Companies & Partners

Companies and entities that develop and offer solutions for home management, energy data applications, and energy / water monitoring technologies have an opportunity to integrate with our platform solution as an API Partner that will provide access to our Smart Energy Rewards Protocol (SERP) allowing provisions for data inputs and machine learning tied to consumer compliance that is integrated with rewards.

The SUNNAI Platform Impact:
  • Software As A Service (SaaS) systems integration.
  • API Integration and Development Options
  • White-label and Co-Branding Provisions
  • Multiple Intergration Subscription Options
  • Device and Equipment procurement options
  • Technical Support
